January 3,2015

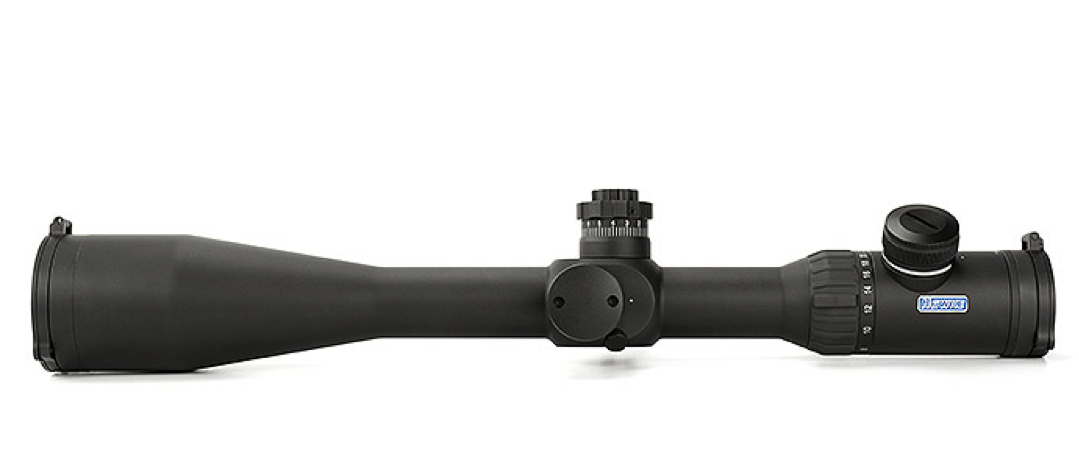

Hawke Airmax 30 4-16x50
AMX Mil Dot Reticle
Model: HK6152
The Airmax 30 Side Focus offers a specialised optical setup for airgunners.
One truly exceptional feature of the Airmax 30 SF scopes is the AMX airgun fully floating Mil Dot reticle.
Key Features:
● 30mm Mono-tube design - handles heavy recoil
● Side Focus Parallax adjustment
● Additional 100mm large focus/parallax wheel*
● Fully multi-coated optical system for maximum
● clarity & light transmission
● Glass etched illuminated reticles - never lose the aim point
● Infinitely adjustable stepless rotary switch

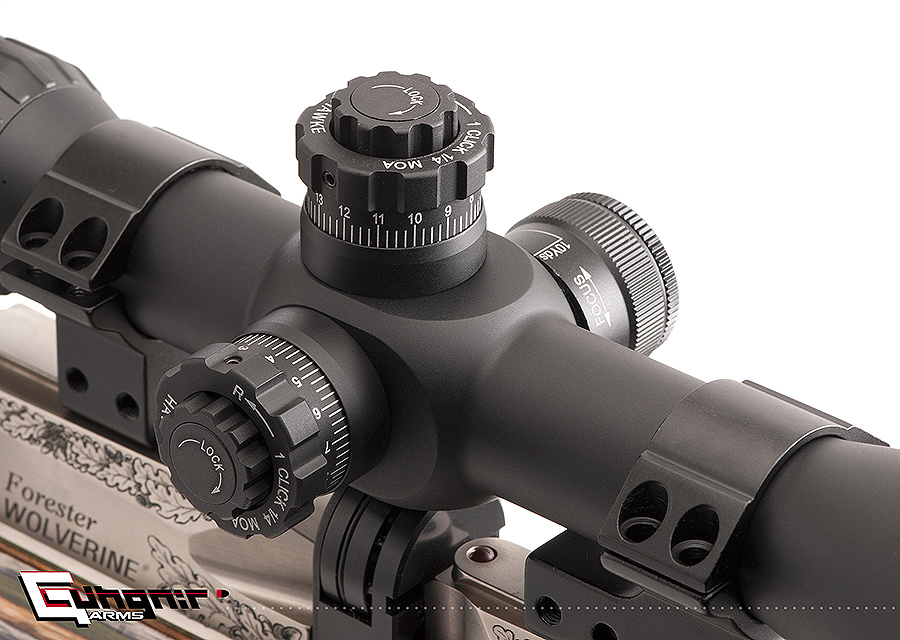

● ¼ M.O.A locking resettable positive click turrets
● Coil erector spring - no shift in zero
Additional Features:
● Protective lens caps
● Tactile high performance rubber grip zoom CRD # 002 343 939

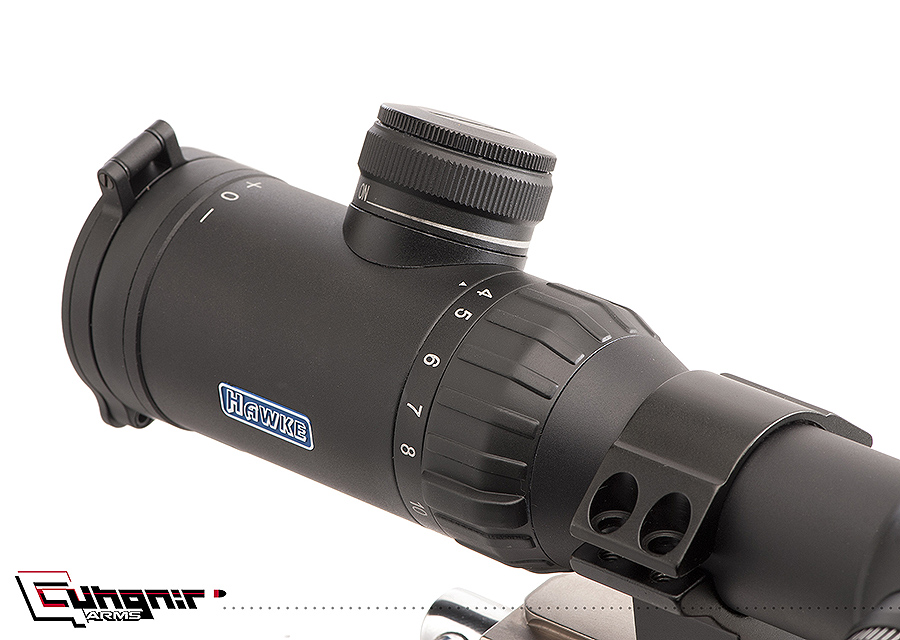

● Fast focus ocular, set the dioptre in seconds
● Fully removable screw-in metal flip-open lens covers
● Sunshade compatible (all models supplied with sunshade)
● Waterproof, shock proof, all calibre rated
● Nitrogen purged & fog proof, for use in all conditions
● Hawke‘ Worldwide warranty

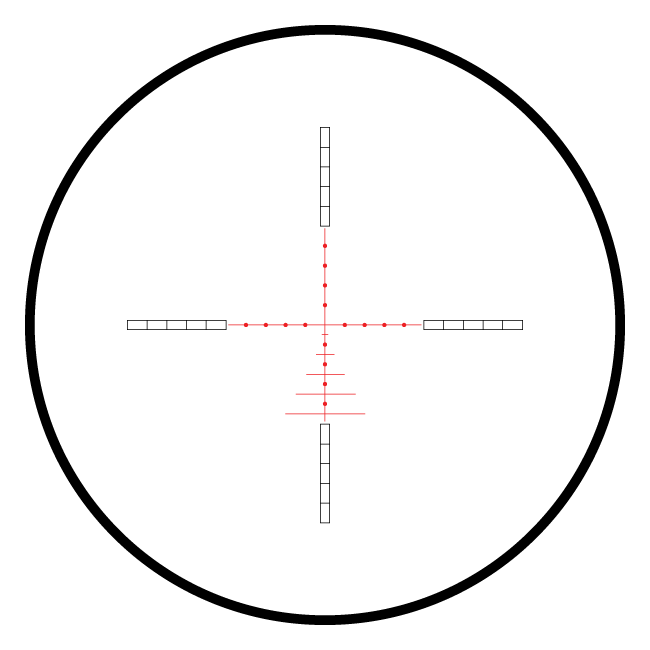

AMX Mil Dot Reticle
The Airmax 30 Side Focus offers a specialised optical setup for airgunners.
One truly exceptional feature of the Airmax 30 SF scopes is the AMX airgun fully floating Mil Dot reticle.
The Airmax 30 SF family of scopes focusses on long and short range Airgun hunting and Airgun Target shooting.
Designed in the UK, the New Airmax 30 SF family provides the shooter a feature-rich scope. The exciting new cosmetic for the Airmax 30 family is just the start of the innovation. New locking resettable turrets make adjustments easy and repeatable, even when used with gloved hands. Boasting a stepless rheostat control that allows for virtually infinite adjustment, ensuring your reticle is visible in almost any light condition.
The new Airmax 30 SF scopes are equipped with a side focus parallax adjustment, with a range of 10 yards to infinity. This enables the shooter to be parallax free and in focus at all target distances. The Patented design allows for the addition of a larger wheel (100mm dia. wheel supplied) to be installed direct to the central axis. This allows for easier, more accurate operation (Pat App # 1320436.7).
One truly exceptional feature of the new Airmax 30 SF scopes is the new AMX airgun reticle available for the first time in this scope family.
Based on a fully floating Mil Dot with additional half milspacing marks below centre, windage marks as well as segmented hollow posts, the reticle is perfectly suited for airgun shooting. Fully BRC/Chairgun Pro compatible, the AMX is an efficient, reliable reticle, that any airgun hunter or target shooter can appreciate.

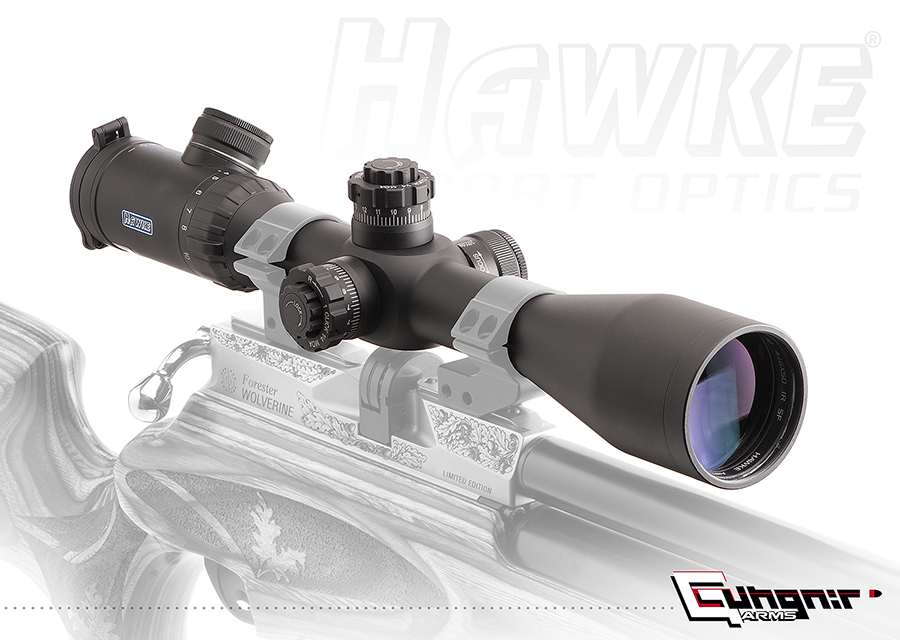

Built around a 30mm mono-tube chassis, the Airmax 30 SF scopes are designed to provide years of reliable use. Four magnification ranges (3-12, 4-16, 6-24 and 8-32) mean no compromising when it comes to scope ion.

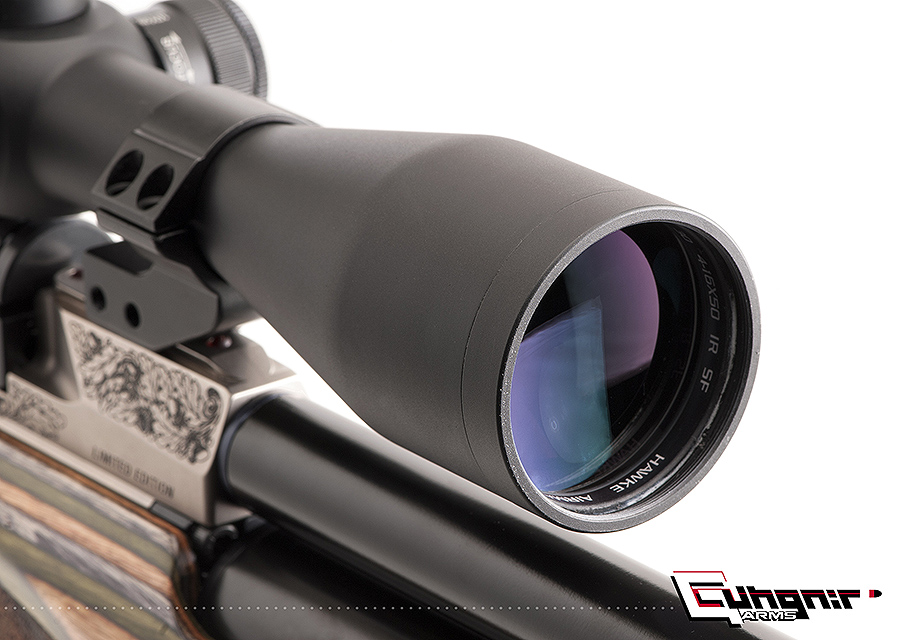

All Hawke Airmax 30 SF scopes have lenses that are fully multicoated for the best possible light transmission and management. Waterproof, shockproof, and nitrogen purged to be fog proof; all Airmax 30 SF scopes are covered by the Hawke® Worldwide Warranty (10 years in Europe and ROW).
Additionally, the Airmax AMX reticles are supported by the free Hawke BRC and Chairgun software programs (PC, Mac, iOS and Android). Supported by your true ballistic information, the BRC allows you to blueprint your projectile to any Hawke multiple aim point reticle.
http://www.hawkeoptics.co.uk/brc.html
With the Hawke BRC you can:
• Choose a preferred preset suitable for your calibre:
• Centerfire | Slug & Sabot | Rimfire | Crossbow Arrow
• Choose a preferred reticle for your shooting
• requirements
• Adjust the presets to either work in metric or imperial
• Change zero distances, muzzle velocity, magnification
• Change Ballistic Coefficient (BC)
• Plot your trajectory and find suitable aim points
• Carry out range finding calculations
• Take your information the field
• The BRC allows you to print trajectory graphs,
• reticle images and range finding calculations.
• The BRC will save your settings for future use.
BRC Desktop / Laptop Version (Windows / Mac OS X)
Ballistics can be a complicated business at the best of times, which is why Hawke have developed easy-to-use and deadly accurate reticles with the added support of the patented Ballistic Reticle Calculator (BRC).
Hawke Ballistic Reticles Calculator (BRC) is a free software program designed to complement 18 different Hawke Reticles. - the Hawke Specialised Reticles (SR6 and SR12 and the new SR Pro), Hawke MultipleAim Point reticles (MAP6 and MAP8), Crossbow reticles (Crossbow MAP, Crossbow SR, XB30, XB1 and XB1ir), Deer PASS SR and MAP and the 10x and 20x 1/2 Mil-Dot reticles.
The BRC is quick to download and navigate around. The calculations produce accurate results in the BRC program, that translate accuracy and precision in the field.
BRC Mobile Version (iPhone / Android)
Hawke Sport Optics is pleased to announce that our world famous Ballistic Reticle Calculator (BRC) PC software is now available for use on your iPhone, iPod touch, iPad and now Android devices.
This all new mobile edition takes advantage of your phones special features to give you new and powerful tools. For example, our inclined shooting tool uses your phones camera and accelerometers to define accurate aim points. Just point your camera at the target and Hawke BRC does the rest!
Blueprint your rifle or crossbow / scope combo and calculate aim points at various magnifications, inclination and weather conditions
Desktop / Laptop System Requirements
Operating System: Windows 98, 98SE, 2000, XP, Vista, Windows 7, Windows 8.
BRC may also run on Windows 95 systems if suitably d. Older systems may require the Visual Basic Runtime.
Free Hard-disk space: 10 MB or more
RAM: 64 MB minimum
Display: resolution 600 x 800 or greater. (A colour monitor is preferred but a monochrome device is usable)
You will also need a printer on which to print the graph and/or reticles. Again, a colour printer is best but a monochrome printer will suffice.
If using Microsoft Windows please ensure you are running the latest version of Java click here to download.
Download PDF instructions: click here
Apple iOS devices
Download the Apple IOS 'Help File'
iPod, Touch, iPhone and iPad
Operating System: iOS 4.0 or later
Android devices
Download the Android 'Help File'
Pixel density: 320 x 480 to 480 x 800
Operating System: O/S 2.2 (Froyo) or later
